3M™ Four-Wall Header Straight and Right Angle 3000 Series
- | Select product options for IDs.
Details
Highlights
- Center slot and military (with 3M™ Four-Wall Header, 2500 Series, N3518 polarizing key) polarization prevents mis-insertions and reduces insertion time
- Robust latch and eject system
- Available in 6-64 positions
- Through-hole version suitable for reflow soldering using "paste-in-hole" techniques
- Straight and right-angle version available
- Exposed solder tails (on right-angle version) provide ease of cleaning and reduced repair costs
3M™ Four-Wall Header 3000 Series is available with a latch/eject system for the secure mating of two-part connectors and easy maintenance. This PCB connector features plastic latches with metal roll pins, offered with 30 gold-plated contacts. The glass-filled PCT plastic insulator is high-temperature resistant designed to withstand IR reflow soldering in high-volume manufacturing.
The two designs integrated into 3M™ Four-Wall Header Straight and Right Angle 3000 Series provide flexibility for various applications. The exposed solder tails on the right-angle version make cleaning and repairs easier, saving you time and costs. Made with high-temperature resistant materials, this connector can withstand infrared (IR) reflow soldering in high-volume manufacturing.
-
-

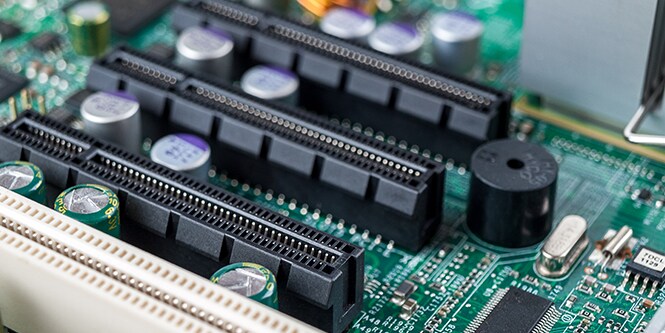

Recommended applications
- Cable to printed circuit board (PCB) connection
Specifications
Resources
Related Products
| PCB Mounting Style | Through Hole | |||
| Number of Contacts | 34 , 26 , 50 , 24 , 60 , 40 , 20 , 64 , 14 , 10 , 16 , 30 | |||
| Pitch (Metric) | 2.54 mm | |||
| Connector Style | Header, Plug | |||
| Number of Contact Rows | 2 |
