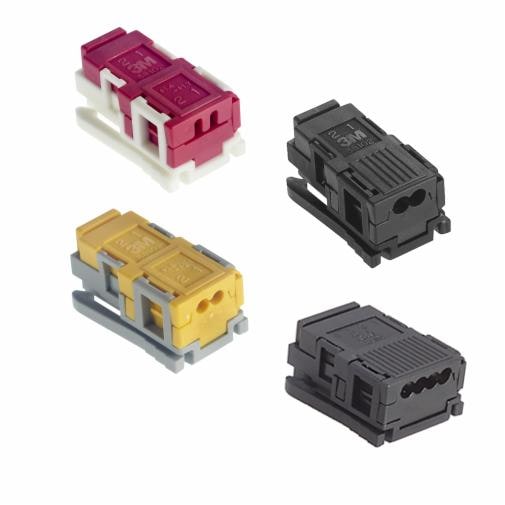

3M™ Link Connector, 381 Series

  • Options available
  • | Select product options for IDs.

Hermaphroditic four-point contact mating structures reduces the number of different components required to interconnect and ensures a reliable interconnect

Easy, labor saving and reliable IDC termination

T-Tap termination enable mid-cable terminations without special preparation or handling of the cable or wires in order to interconnect fieldbus and power lines at any point

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 199KB)

Details

Highlights
  • Hermaphroditic four-point contact mating structures reduces the number of different components required to interconnect and ensures a reliable interconnect
  • Easy, labor saving and reliable IDC termination
  • T-Tap termination enable mid-cable terminations without special preparation or handling of the cable or wires in order to interconnect fieldbus and power lines at any point
  • Easy field termination with no special wire preparation – no stripping, tinning or special tooling
  • Can terminate with a common pair of pliers
  • Semi-transparent color-coded covers for wire inspection and wire retention
  • Hermaphroditic four-point contact mating structures reduces the number of different components required to interconnect and ensures a reliable interconnect
  • T-Tap termination enable mid-cable terminations without special preparation or handling of the cable or wires in order to interconnect fieldbus and power lines at any point
  • 5 Amp maximum current carrying capability per contact
  • Latching mechanism maintains a reliable interconnection in demanding field applications
  • For more information refer to Customer Drawing 78-5100-2098-1 (formerly known as TS-2098)
  • Series 381, .100" "Power Clamp" WireMount Socket, IDC, Hermaphroditic

Series 381, .100" "Power Clamp" WireMount Socket, IDC, Hermaphroditic

Specifications

Resources

Related Products

Termination Method IDC
Maximum Conductor Size (Metric) 0.5 mm², 0.3 mm², 1.25 mm², 0.75 mm²
Number of Contacts 4 , 2
Minimum Conductor Size (Metric) 0.5 mm², 0.3 mm², 1.25 mm², 0.75 mm²
Connector Style Plug
Number of Contact Rows 1
