3M™ Power Clamp Header Straight 356 Series

  • Options available
  • | Select product options for IDs.

Industry-leading Power Clamp technology for secure and reliable electrical connections

Designed for easy board mounting, saving time and effort during installation

Available in both vertical and straight configurations to fit different board layouts

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 176KB)

Details

Highlights
  • Industry-leading Power Clamp technology for secure and reliable electrical connections
  • Designed for easy board mounting, saving time and effort during installation
  • Available in both vertical and straight configurations to fit different board layouts
  • Offers one- and two-port options, providing flexibility for various application requirements
  • Thru-hole design ensures strong and stable connections for long-term performance
  • Restriction of Hazardous Substances (RoHS) compliant, meeting industry standards for environmental safety
  • Contact design, housing design and latching mechanism deliver durability and long-lasting use
  • CC-Link compatible for seamless integration with existing interconnect systems
  • RoHS Compliant. See paragraphs E1 and C1 of Regulatory Information Appendix
  • For more information, refer to Data Sheet TS2274 (TS-2274)
  • Series 356, 3mm "Power Clamp" Board Mount Header, Vertical, 1 and 2 Port Options, Thru Hole

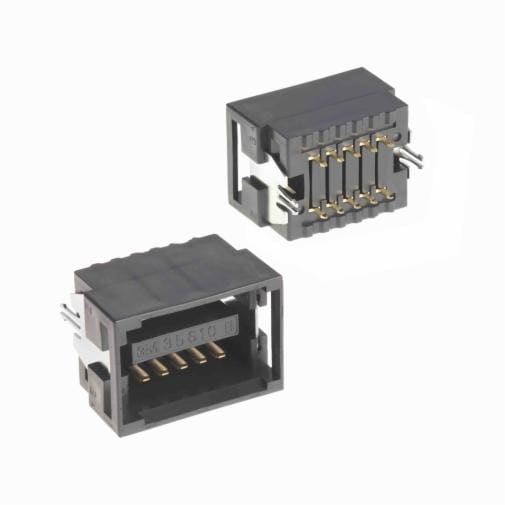

The 3M™ Power Clamp Header Straight 356 Series can accommodate up to two five-position 3M™ Power Clamp Wiremount Sockets, making it versatile and efficient for wire-to-board connection needs. With its straight, thru-hole solder tails and end-to-end stackable design at a 25.4 mm pitch on a printed circuit board (PCB), the 3M header straight 356 series offers easy installation and integration. It also features integrated press-fit board-retention pins, ensuring the connector stays securely in place during wave soldering.

The one-touch latching mechanism on the 3M™ Power Clamp Header Straight 356 Series provides a reliable interconnection, even in demanding field applications. Additionally, this header is keyed to prevent reverse insertion of sockets and offers polarization options for proper interconnection of mated connectors. It is compliant with the CC-Link Communication Interconnect Standard and is Restriction of Hazardous Substances (RoHS) compliant.
